YOUR ONE-STOP SOURCE FOR CNC MACHINING EQUIPMENT IN THE GTA

Hyper CNC Machining has significantly invested in the latest technologies and tooling systems. Along with a plethora of tooling operations, our precise machinery and software allow us to implement our services adeptly and efficiently. As your one-stop-shop for CNC machining equipment in the GTA, we assist designers, engineers, and hobbyists in designing, developing and fabricating top-notch CNC precision parts. We also have access to waterjet machines, laser cutters, welders, manual mills, grinders, and drill presses.


Contact us today for more information.

OUR EQUIPMENT

Allow us to introduce you to our equipment which can enhance your production process. With a focus on precision and the latest industrial processes, these machines can provide the cutting-edge services you need.

ROBOCUT C600IC-12 WIRE EDM

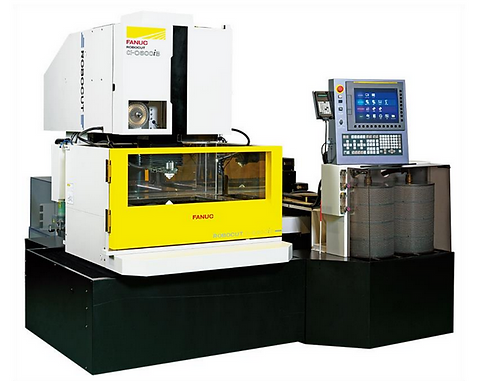

RoboCut C600iC-12 Wire EDM

RoboCut C600iC Wire EDM

The RoboCut C600iC Wire EDM is the latest innovation of FANUC, featuring a state-of-the-art 31i-WB control with iHMI User Interface, AWF3, and an energy and wire usage- friendly economy mode. It offers an outstanding capability of producing straight and precise parts due to its powerful automatic wire tension meter and servo motor adjustment. Furthermore, the AWF3 has been enhanced to accommodate thread thicknesses of up to 16 inches. With its reliable Japanese-made technology, this RTS machine can be ready to ship within 5 days with a guarantee.

Specifications:

  • Wire Size: .004” to .012”

  • Posi 41.3×32.3×16.1

  • Maximum Workpiece Size (submersible)

  • 41.3×32.3×12.000″ (1050x820x305) in (mm)

  • Z axis 12.200

  • Cutting Accuracy: (± .00001”)

  • Positioning Accuracy: (± .0001”)

  • Rotary Glass Encoder: (.000002″)

  • Both options (submersible) and (non-submersible)

  • Larger pieces can be cut with process of non-submersible

ROBOCUT C600IB-12 WIRE EDM

RoboCut C600iB-12  Wire EDM

The FANUC RoboCut C600iB-12 Wire EDM comes with a powerful new 31i-WB control, including the latest iHMI user interface and the enhanced AWF3 with the ability to thread thicknesses of up to 12 inches. Not only providing energy and wire usage savings, but this machine can also accurately cut through virtually no casting material residue. The robust wire tension meter and servo motor combination guarantee a precision finished product. Built 100% in Japan, the RoboCut CiB-Series guarantees reliability, an assurance synonymous with the FANUC brand.

RoboCut C600iB-12 Wire EDM

Specifications:

  • Wire Size: .004” to .012”

  • Posi 41.3×32.3×16.1

  • Maximum Workpiece Size (submersible)

  • 41.3×32.3×12.000″ (1050x820x305) in (mm)

  • Z axis 12.200

  • ​Cutting Accuracy: (± .00001”)

  • Positioning Accuracy: (± .0001”)

  • Rotary Glass Encoder: (.000002″)

  • Both options (submersible) and (non-submersible)

  • Larger pieces can be cut with process of non-submersible

Hartford Pro 1000

Hartford PRO 1000

The uniquely designed column boasts extra-wide and large sizing, providing increased rigidity, a substantial fastening surface on the base and maximized mat surface between the spindle head and the column. The exceedance in size allows for superior stability and a perfect structural ratio for outstanding stability. This unique column design offers great structural support, increased performance and reliability.

Specifications:

(44 x 24 Travel) CNC 3 Axis (5 Axis Capable) Vertical Milling Center

  • ​Table Size: 1,150 x 600 MM

  • Table Load: 700 KGS

  • X Y Z Travels: 1,000 / 600 / 630 MM

  • Spindle Nose To Table: 100 ~ 730 MM

  • Spindle Taper: #40

  • Spindle Speeds: 6,000 8,000 10,000 12,000 RPM

  • Spindle Power: 7.5 11.0 15.0 KW

  • Rapid Traverse Rates: 20 M/MIN

  • Number of ATC Stations: 20 24

HARTFORD PRO 1000
AGMA VMC-115

AGMA VMC-115

AGMA has designed their hardened box way machines with exceptional rigidity and sturdiness for heavy-duty cutting. In order to reduce cutting-induced vibrations, each component of the machine structure is made from highly rigid Meehanite cast iron (FC30) with stress-relieve measures. Additionally, all slide-ways have been heat-treated and precision-ground to maintain accuracy. To minimize any potential vibrations, the Z-axis drive features double guide ways and counter-balancing. The agility and stability of the machine outperform most linear-way type machines in the market.

AGMA VMC-115

Specifications:

(44 x 24 Travel) CNC 3 Axis Vertical Milling Center

  • ​Max. Table Load: 800 kgs

  • Spindle Taper: BT-50

  • Spindle Speed: Pulley 8,000RPM

  • Magazine Capacity: ARM TYPE 24 TOOLS

  • Rapid Traverse: 20/20/15m/min

  • Cutting Feedrate: 1-10,000MM/MIN

  • ​Spindle Motor: 11/15KW

  • X/Y/Z Motor: 3/3/3KW

  • Machine Height: 2,450MM

  • Floor Space: 3,000*2,720MM

  • Machine Weight: 7,000KGS

  • Controller: FANUC 0IMF

AGMA VMC-158
AGMA VMC-158

AGMA VMC-158

AGMA hardened-way machines are designed to provide rigidity and strong cutting capabilities. Thanks to their exclusive, vibrational-dampening structure, these machines offer even greater agility than standard linear-way type machines. AGMA also offers a specialized, dedicated support network for customers requiring special material cutting. Our commitment to customer satisfaction is always our top priority. Thus AGMA provides the most suitable solution to meet the needs of our clients.

Specifications:

  • ​(62 X 32 Travel) CNC 3 Axis Vertical Milling Center

  • Table: Table Size 66.93" x 32.09"

  • Maximum Table Load 4,400 Lbs

  • Travels: X-Axis Travel 59.05"

  • Y-Axis Travel 31.5"

  • Z-Axis Travel 27.56"

  • Spindle Nose to Table Top 7.87" - 35.43"

  • Spindle: Spindle Speeds Minimum - Maximum 40 - 4,000 RPM

  • ​Spindle Taper 50 Taper

  • Main Motor (30 min. / continuous) 18 / 15 HP

  • Tool Changer: Tool Changer Positions (side mount) 24 ATC

  • Rapids: Rapid Traverse (X & Y / Z) 590 / 472 IPM

  • Cutting Feed Rate 393 IPM

  • Dimensions: Floor Space (L x W x H) 163" x 136" x 124"

  • Weight (approx.) 33,500 Lbs

TAKUMI V-18

TAKUMI V-18

This machine offers superior performance in metal component, die-&-mold machining, with linear motion consisting of ball-type ball-screws combined with 4-piece box-ways. To optimize lubrication, the system uses a high-grade oil injector, complete with copper pipes, for lubrication circulation. The inclined-plane design on the chassis and rear flushing system provide effective chip removal. With heat treatment, Meehanite casting iron is used for high-rigidity and high-precision mechanical structures to eliminate residual stress, ensuring accurate miniature movements and lasting accuracy.

TAKUMI V-18

Specifications:

  • (70 X 34 Travel) 3 AXIS CNC Vertical Milling Centre

  • X-Axis (mm): 1.8

  • Y-Axis (mm): 850

  • Z-Axis (mm): 750

  • Table working surface W x D (mm): 1.900 x 850

  • Load max. (uniform distribution) (kg): 2

  • Distance from spindle nose to table (mm): 200 - 950

  • T-Slots (DIN 650): 5 x 22mm x 150mm

  • ​Spindle Taper: SK50 / BT50

  • Type: Riemen

  • Power S1/S6 (kW): 15 / 25

  • Torque S1/S6 (Nm): 95,5 / 159

  • Spindle Speed (rpm): 8

  • Rapid Traverse X/Y/Z-Axis (m/min): 16 / 16 / 14

  • Cutting Feed Rate X/Y/Z-Axis (mm/min): 5

BRANDS WE WORK WITH

We're proud to partner with some of the leading brands in the market, such as:

RELIABLE CNC MACHINING EQUIPMENT AND SERVICES

We are your go-to shop for CNC machining services in the GTA.
